Raycasting Rendering

In this example, you import the structured volume data and render by using raycasting renderering method.



1.　Make a working directory

First please create a working directory (e.g., RayCasting) and move in this directory．

# mkdir  RayCasting

# cd RayCasting



2.　Programming

In order to import the volume data form standard input, you check the number of command-line argument.

int main( int argc, char** argv )

{

　if( !(argc == 2 ) ) {

　　　std::cerr << "USAGE (1): ./RayCasting volume_data" << std::endl;

　　　exit(1) ;

　}

　return ( 0 );

}



3.　File Importer

The input data file imports by using kvs::StructuredVolumeImporter and transfers to kvs::StructuredVolumeObject.

kvs::StructuredVolumeObject* object

　　　　= new kvs::StructuredVolumeImporter( std::string( argv[1] ) );

if ( !object )　

{

　　kvsMessageError( "Cannot create a structured volume object." );

　　return( false );

}

4.　Create renderer

In order to apply the ray casting method for rendering the structured volume data, you create the instance of kvs::RayCastingRenderer class.

For example:

kvs::RayCastingRenderer* renderer = new kvs::RayCastingRenderer();

if ( !renderer )

{

kvsMessageError( "Cannot create a ray casting renderer." );

delete object;

return( false );

}

5.　Drawing

For visualization, we should instantiate classes kvs::glut::Application and kvs::glut::Screen and resiter the viusalized objects to the screen．

Notice that the renderer registers with the object.

kvs::glut::Application app( argc, argv );

kvs::glut::Screen screen( &app );

// renderer registers with object

screen.registerObject( object, renderer );

screen.setGeometry( 0, 0, 512, 512 );

screen.setTitle( "RayCastingRenderer" );

screen.show();



return( app.run() );

6.　Header file

You have to include the header file for following class:

Therefore, you include :

#include <kvs/StructuredVolumeObject>

#include <kvs/StructuredVolumeImporter>

#include <kvs/RayCastingRenderer>

#include <kvs/glut/Application>

#include <kvs/glut/Screen>

7.　Sample program

Sample program: RayCasting.tgz

Notice that this sample program includes sample data:



8.　Compile and execute

Let's try to compile and execute above program.

When compiling a KVS program, it is easy to use the automatic Makefile-generation tool kvsmake supplied by KVS.



# kvsmake -G　　　　　　　　　　<-- Create Makefiel

# kvsmake　　　　　　　　　　　　<-- Compile

And then, you show following image.

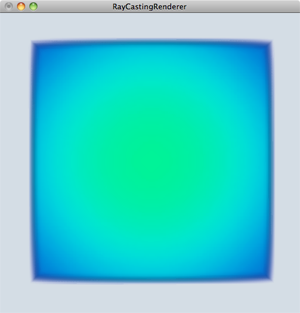

# ./RayCasting　test.fld

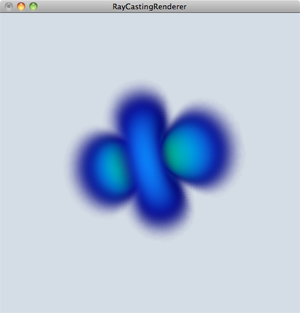

# ./RayCasting　hydrogen.kvsml



test.fld　　　hydrogen.kvsml

test.fld　　　　　　　　　　　　　　　　　　　　　　　　　　　　　hydrogen.kvsml
